This type designs and manufactures Miniature Circuit Breakers which employ hydraulic-magnetic technology for the protection of installations and equipment against overload and short circuit. Suitable for use in residential and commercial applications.

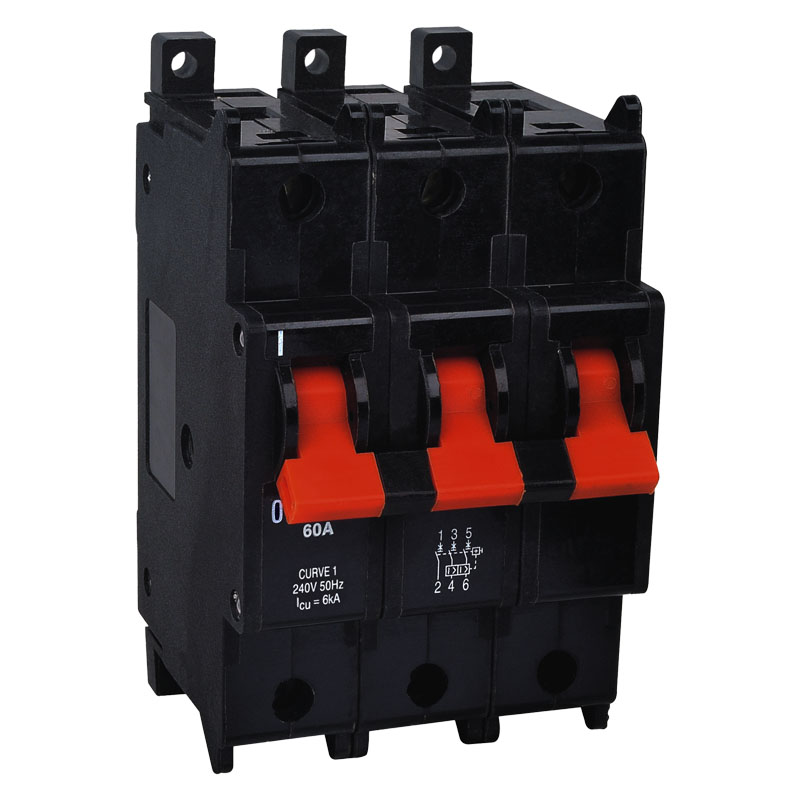

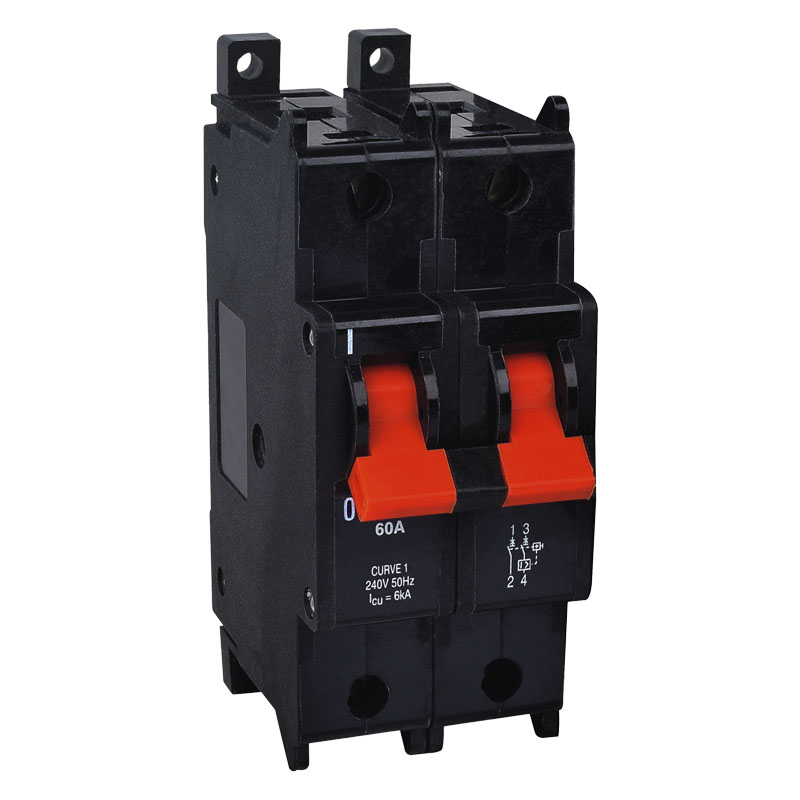

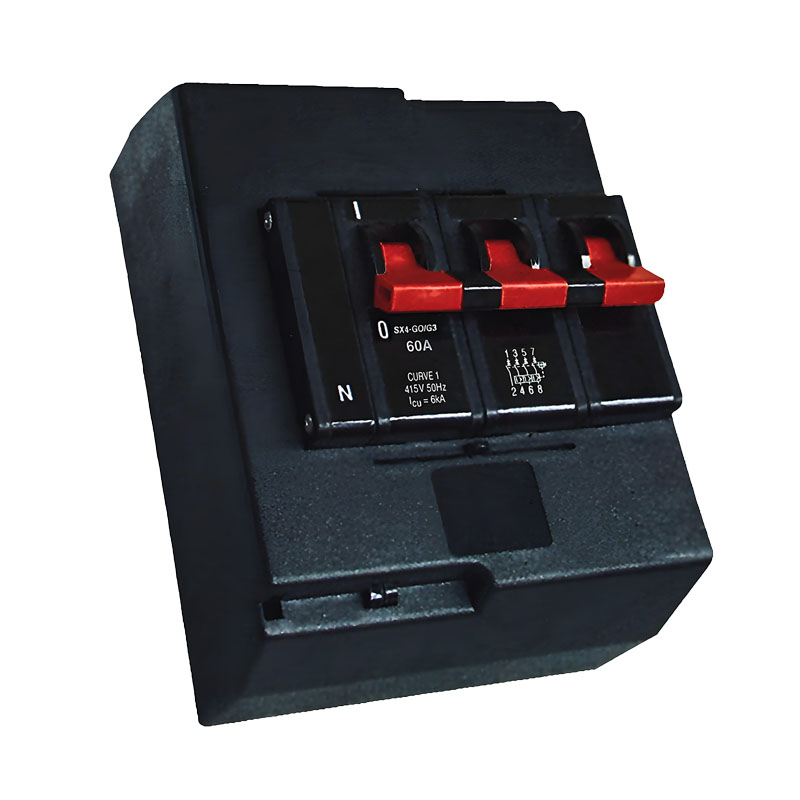

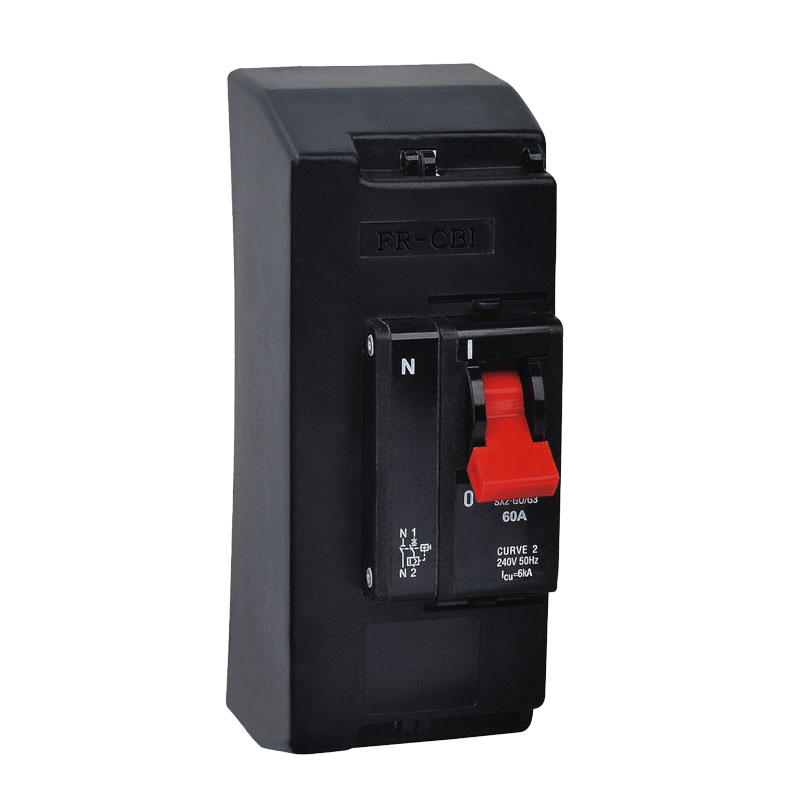

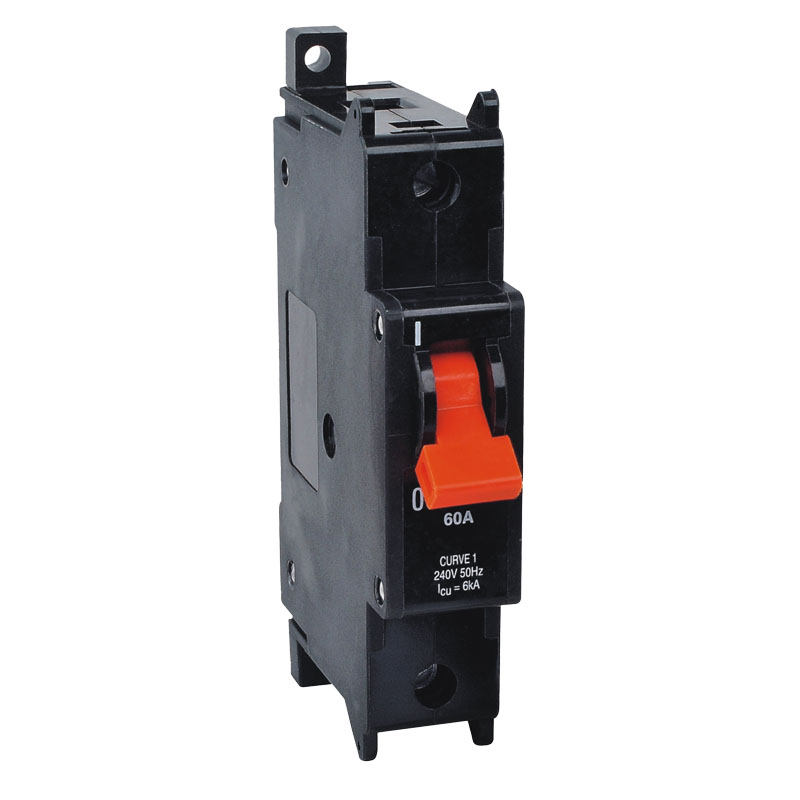

The SX-G3 range of 6kA circuit breakers are suitable for industrial and commercial installation protection i.e. for factories, apartment buildings, high rise commercial buildings and in mini-substations and kiosks, where a 6kA breaking capacity is required. The 6kA circuit breakers can be used for motor protection，All the products can be installed directly onto the Mini-rail. Comply with standard IEC60947-2.
| Detail Technical Data |
| Type | SX-G3 MCB | ||||
| Number of Poles | 1P | 1P+N | 2P | 3P | 3P+N |
|
Operating Voltages |
240VAC |
415VAC |
|||
|
Current Rating |
5A-100A |
||||
|
Interrupting Capacity |
6kA |
||||
|
Operating Temperature |
-40℃ to +85℃ |
||||
|
Mounting Options |
Surface Mount(Screw Fix) |
||||
|
Time Delay Curves |
C1(Red/Orange Handle) |
||||
|
Endurance |
10000 operations - 1500 with current, 8500 without current |
||||
|
Rated Impulse Withstand Voltage |
6kV |
||||
|
Approvals |
IEC60947-2 |
||||
| Dimensions |

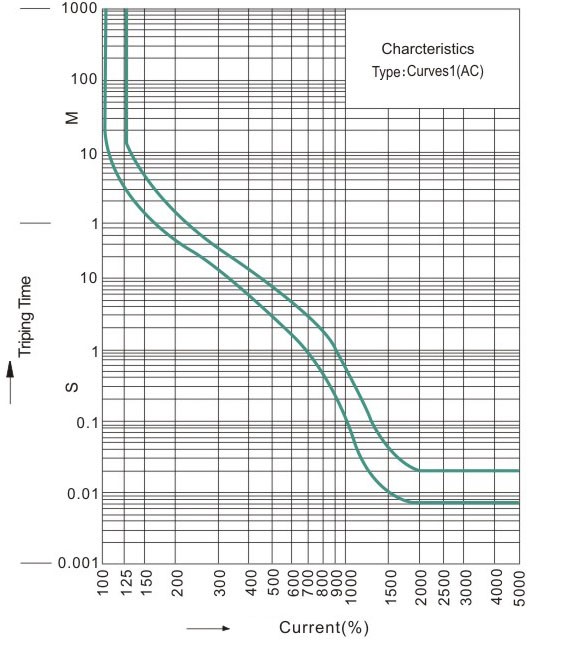

| Time Delay Curves |
