This type designs and manufactures Miniature Circuit Breakers which employ hydraulic-magnetic technology for the protection of installations and equipment against overload and short circuit. Suitable for use in residential and commercial applications.
|
Features |
Applications |
|
• AC circuit breaker • Hydraulic-magnetic technology • 100% rated current capability • One, two, three pole • Ratings 5 A to 63 A • Can be switched immediately after tripping • Dual (DIN & mini rail) mount • Suitable to use for electrical isolation |
• AC branch circuit protection (IEC60947-2) • Telecom / datacom equipment • Lighting control • UPS equipment • Mobile power generation equipment • Railway signalling equipment • Residential equipment • Industrial equipment |
|
Detail Technical Data |
|
Type |

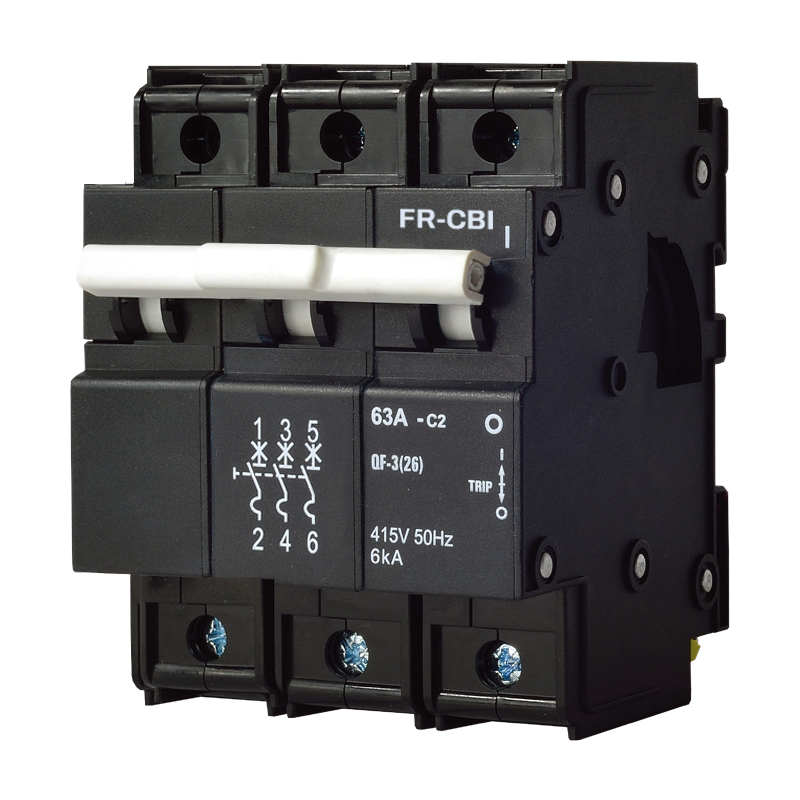

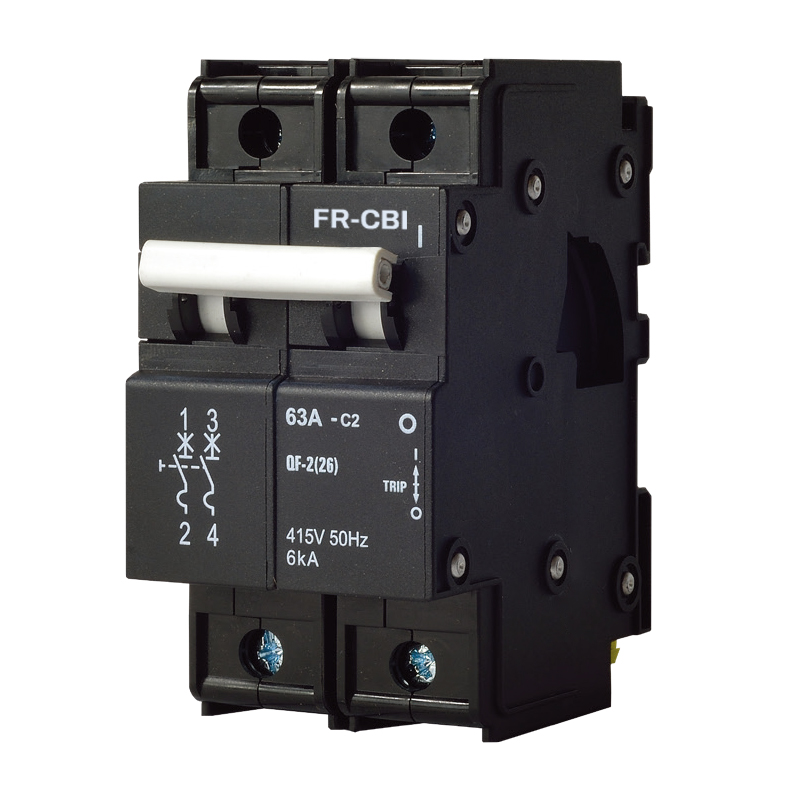

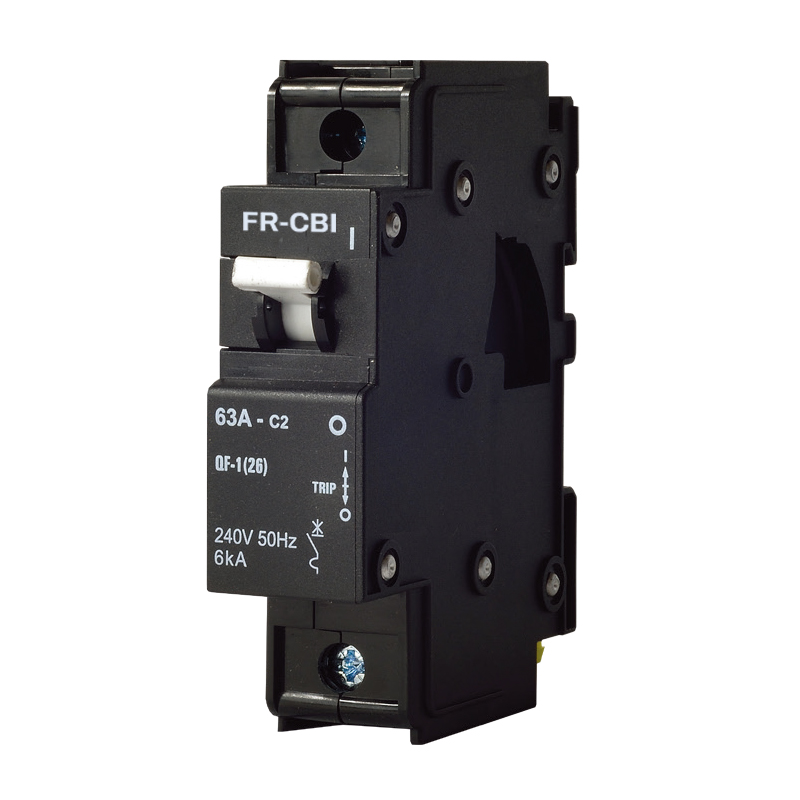

QF(26)L Circuit Breaker |
||
|
Number of poles |
1P | 2P | 3P |
|
Operating Voltages |
240VAC |
415VAC |
|
|
Current Rating |
5A-63A |
||
|
Interrupting Capacity |
6kA |
||
|
Operating Temperature |
-40℃ to +85℃ |
||
|
Mounting Options |
Din & Mini Rail |
||
|
Time Delay Curves |
C1(Red/Orange Handle), C2(White Handle) |
||
|
Endurance |
10000 operations - 1500 with current, 8500 without current |
||
|
Rated Impulse Withstand Voltage |
6kV |
||
|
Approvals |
IEC60947-2 |
||

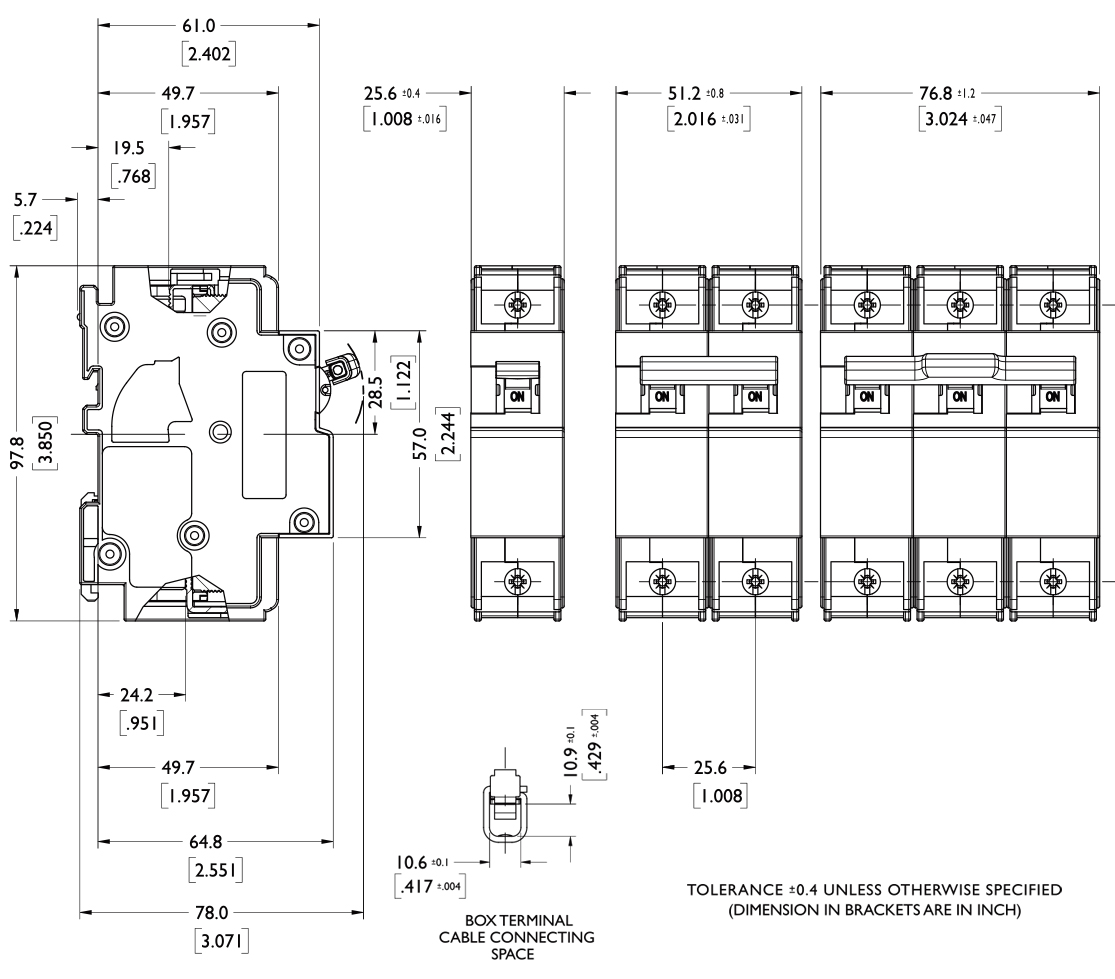

Dimensions

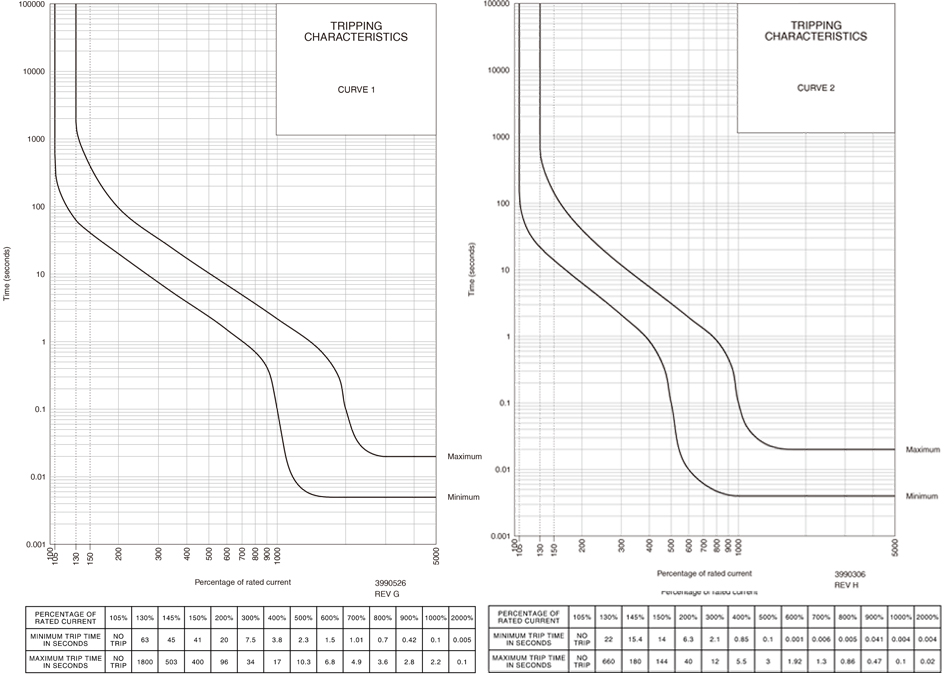

| Time Delay Curves |
