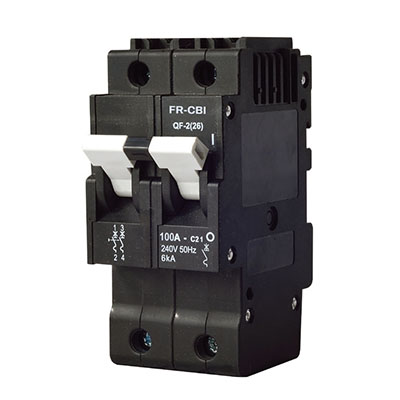

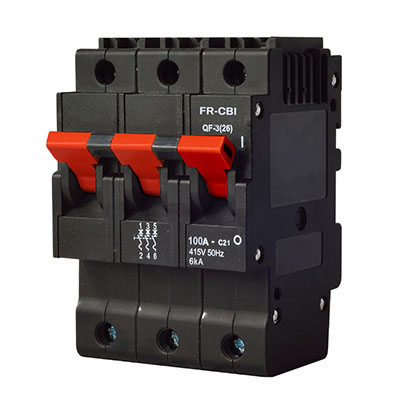

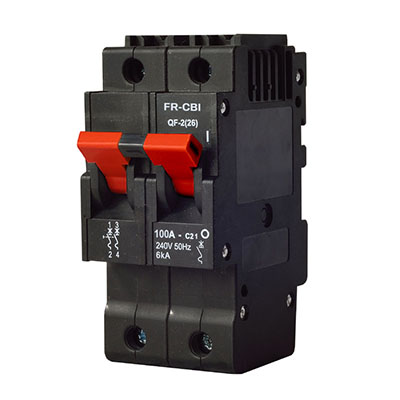

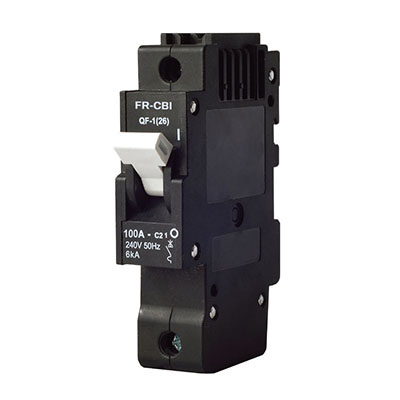

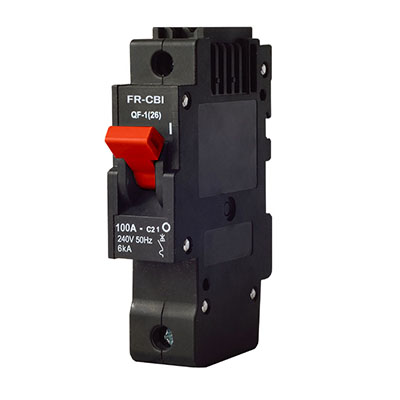

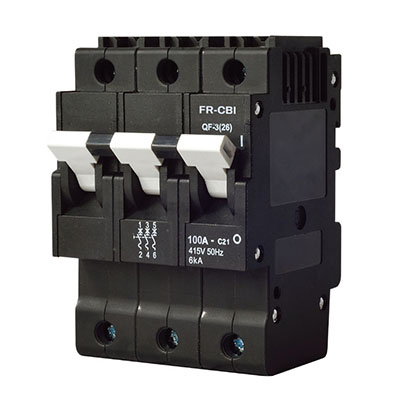

This type designs and manufactures Miniature Circuit Breakers which employ hydraulic-magnetic technology for the protection of installations and equipment against overload and short circuit. Suitable for use in residential and commercial applications.
| Features | Applications |
|
• AC circuit breaker • Hydraulic-magnetic technology • 100% rated current capability • Ratings 5A to 100 A • Available in various currents and time delays • Precision tripping characteristics • Can be switched immediately after tripping • Dual (DIN & mini rail) mount • Suitable to use for electrical isolation |
• AC branch circuit protection • Switch disconnector • Telecom / datacom equipment • Lighting control • UPS equipment • Mobile power generation equipment • Railway signalling equipment • Residential equipment • Industrial equipment |
| Detail Technical Data |
| Product Type |
Circuit Breakere |
||||
| Approvals |
IEC60947-2 |

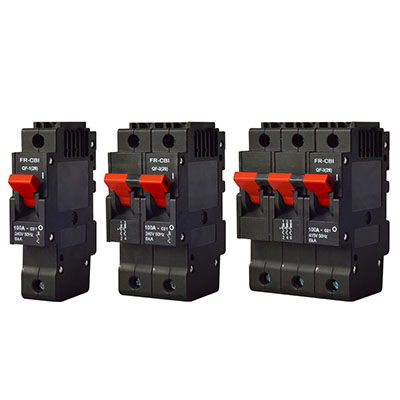

||||
| Number of Poles | 1P | 1P+N | 2P | 3P | 3P+N |
| Operating Voltages |
240VAC |
415VAC |
|||
| Current Rating |
5A-100A |
||||
|
Interrupting Capacity |
6KA |
||||
|
Operating Temperature |
-40℃ to +85℃ |
||||
|
Mounting Options |
Din & Mini Rail |
||||
|
Time Delay Curves |
C1(Red/Orange Handle), C2(White Handle) |
||||
|
Endurance |
10000
operations - 1500 with current, 8500 without current |
||||
|
Rated Impulse Withstand Voltage |
6kV |
||||
|
Weight |
200g per Pole |
||||

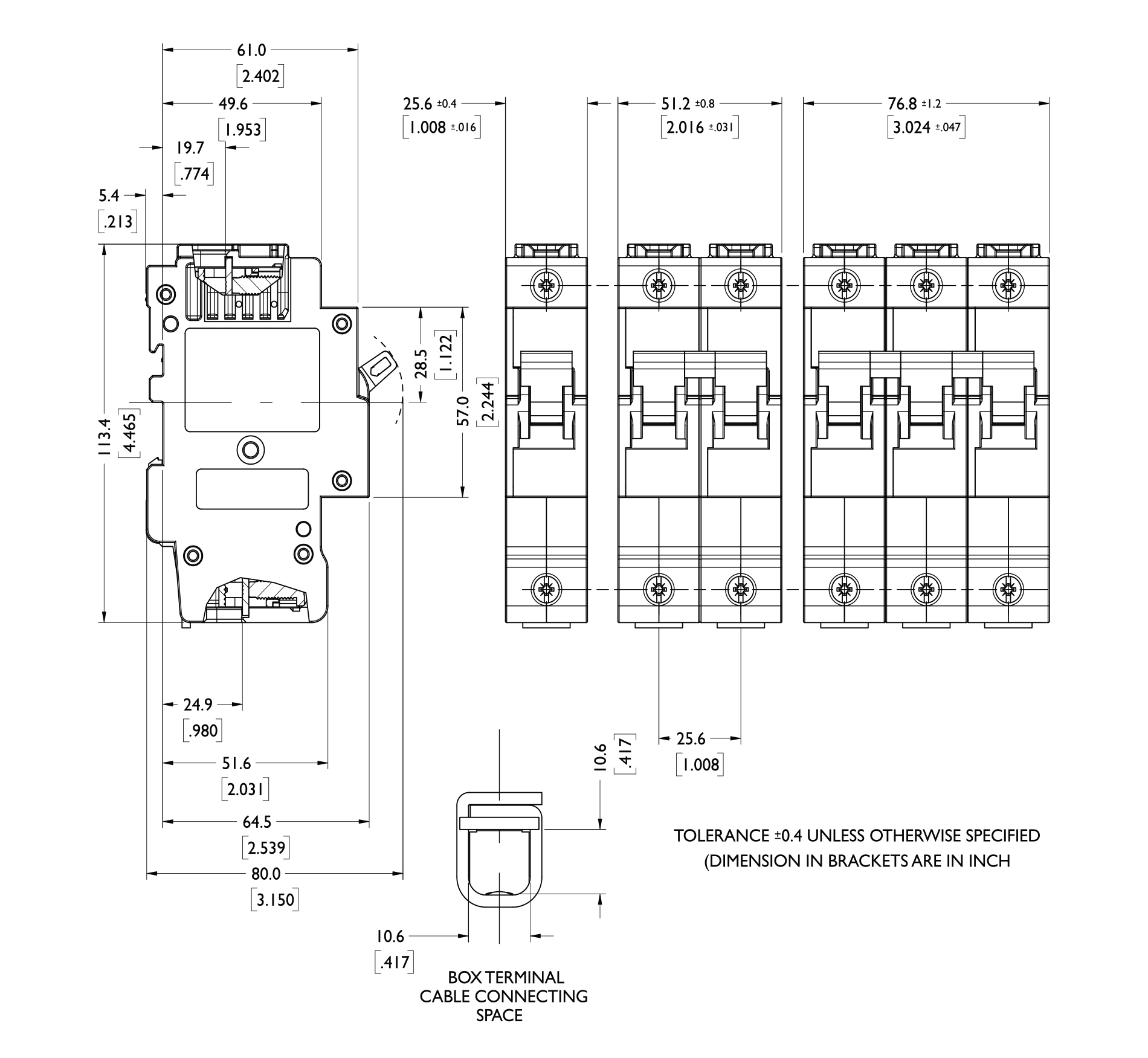

| Dimensions |

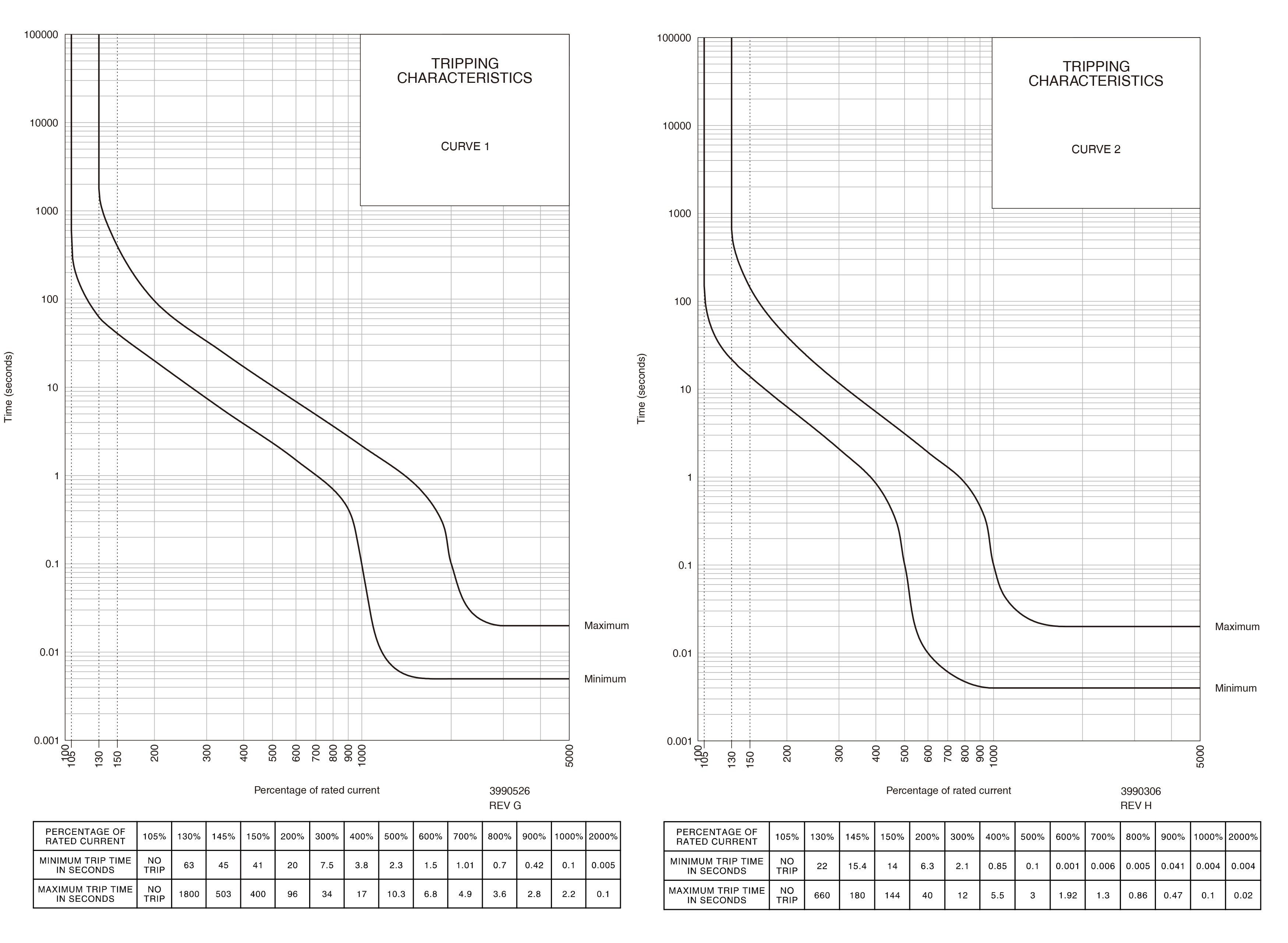

| Time Delay Curves |
