A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected. Circuit breakers are rated both by the normal current that they are expected to carry, and the maximum short-circuit current that they can safely interrupt. This latter figure is the ampere interrupting capacity (AIC) of the breaker. It is in conformity IEC 60947 standard.
| Detail Technical Data |
| Type |

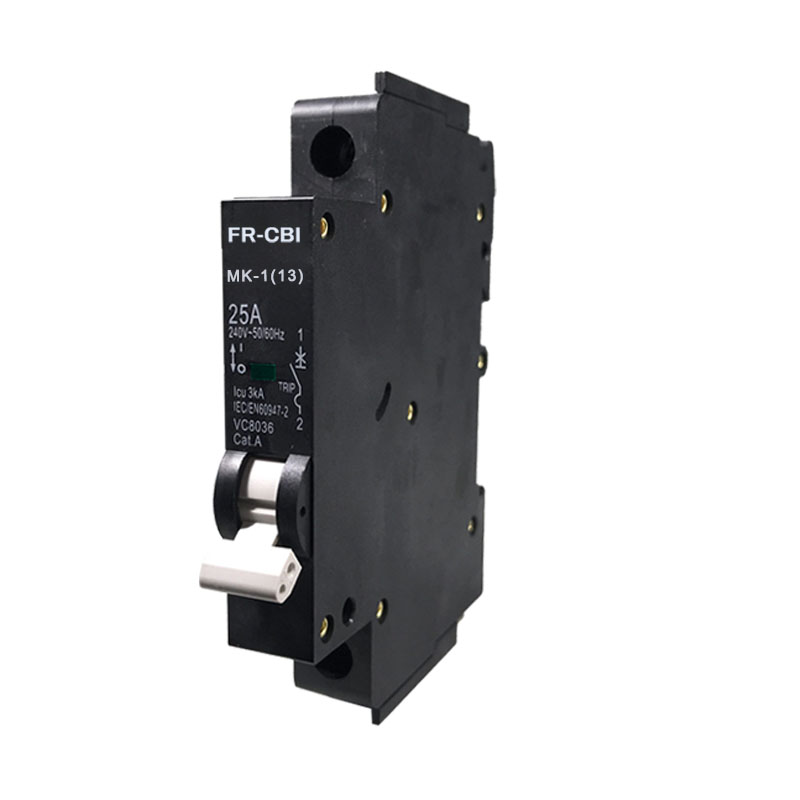

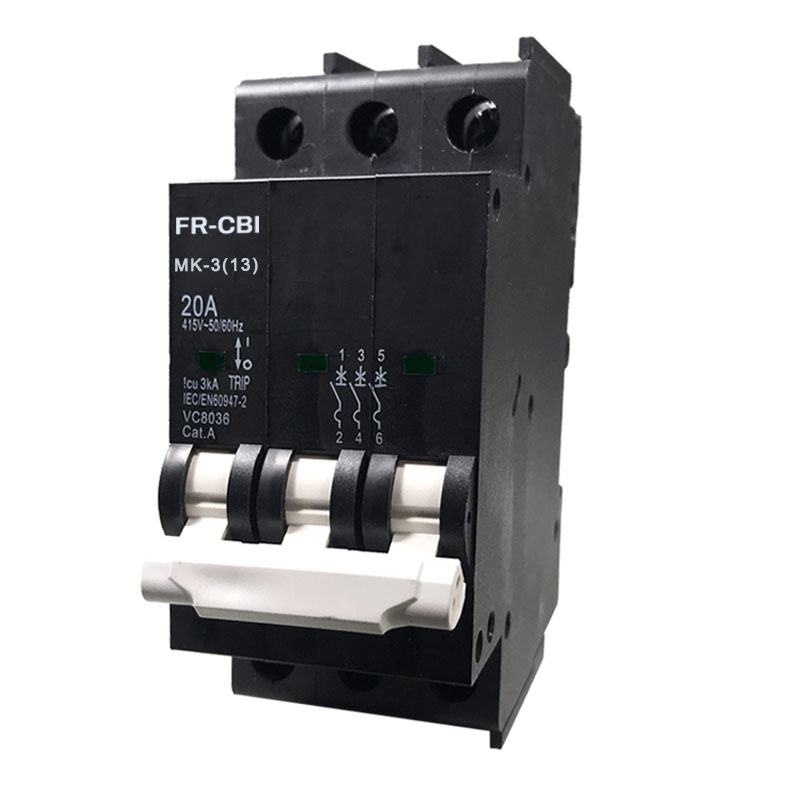

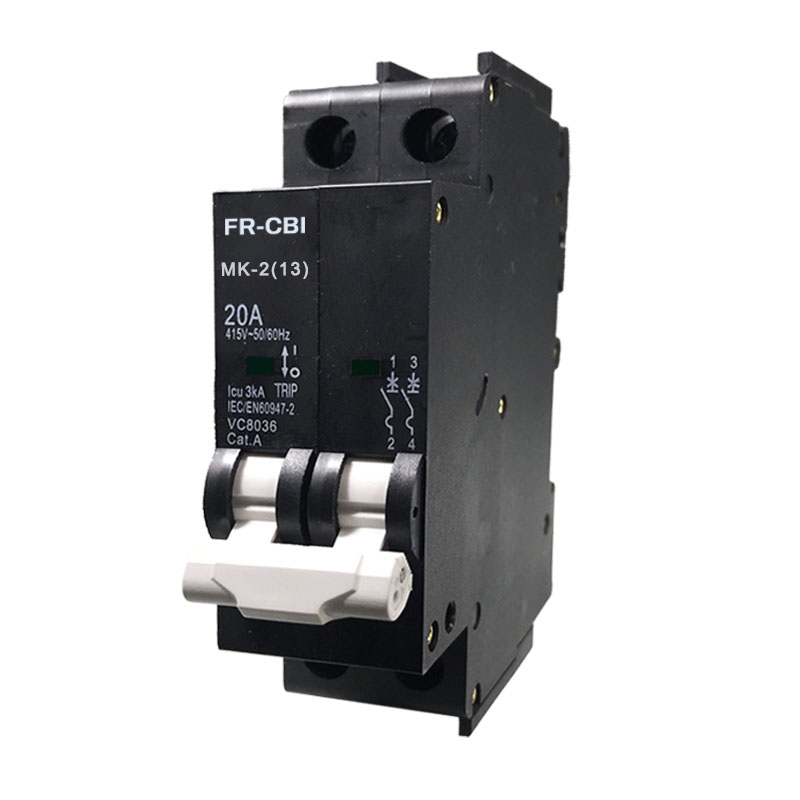

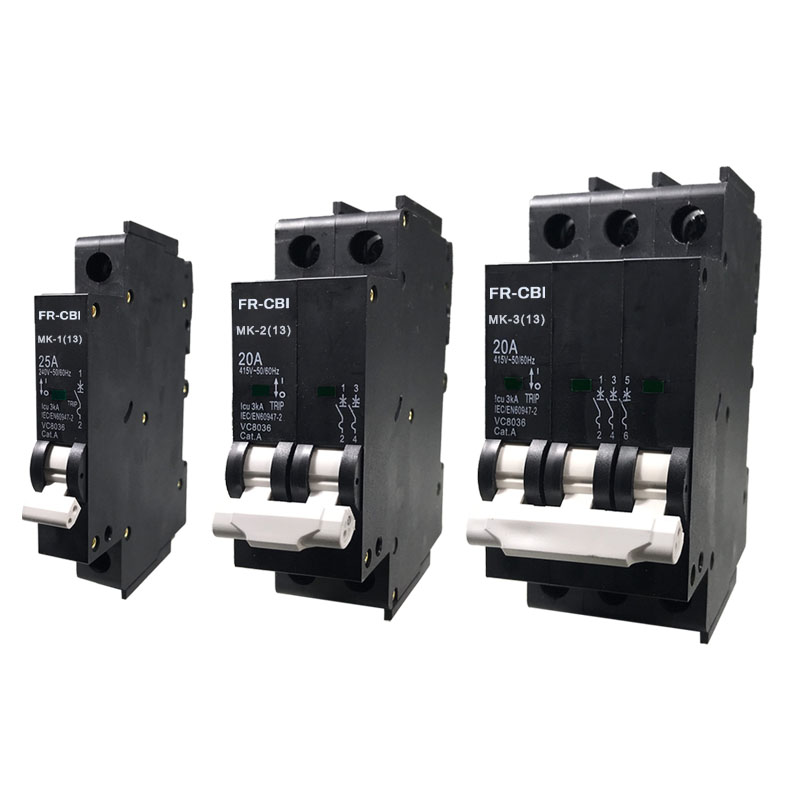

MK Miniacture Circuit Breaker (MCB) |
||||
| Standard |
IEC60947-2 |
||||
| Number of poles | 1P | 1P+N | 2P | 3P | 3P+N |
|
Operating Voltages |
230VAC |
415VAC |
|||
|
Current Rating |
5A-63A | ||||
|
Rated frequency |
50/60HZ |
||||
|
Rated breaking capacity |
3kA |
||||
|
Electrical life expectancy |
4000 times |
||||
|
Mechanical life expectancy |
10000 times |
||||
|
Protection degree |
IP20 |
||||
|
Ambient temperature |
-30℃ to +60℃ |
||||
|
Connection |
Top and bottom |
||||
|
Mounting |
Mini Din Rail by means of fast clip device |
||||

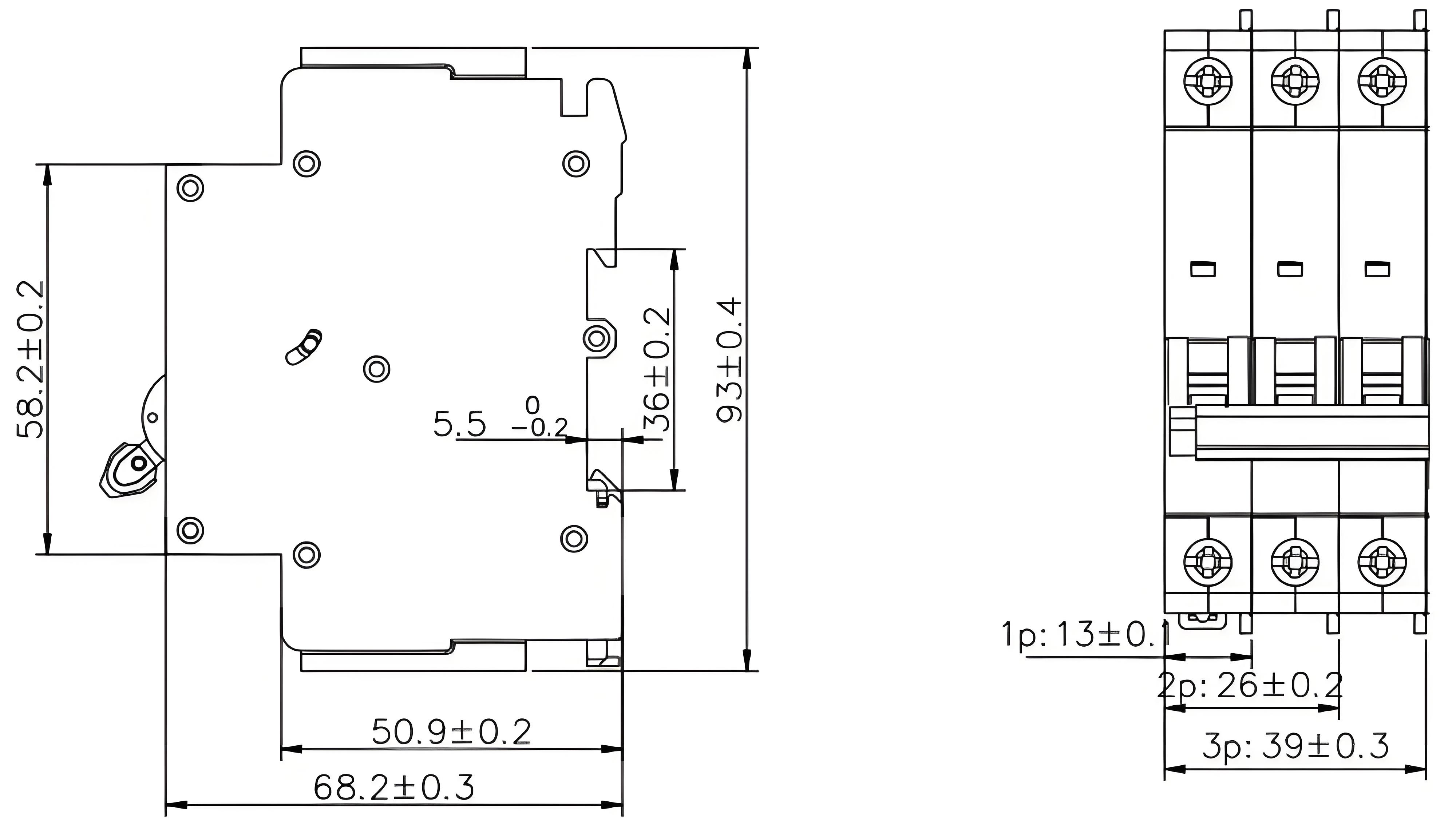

| Dimensions |

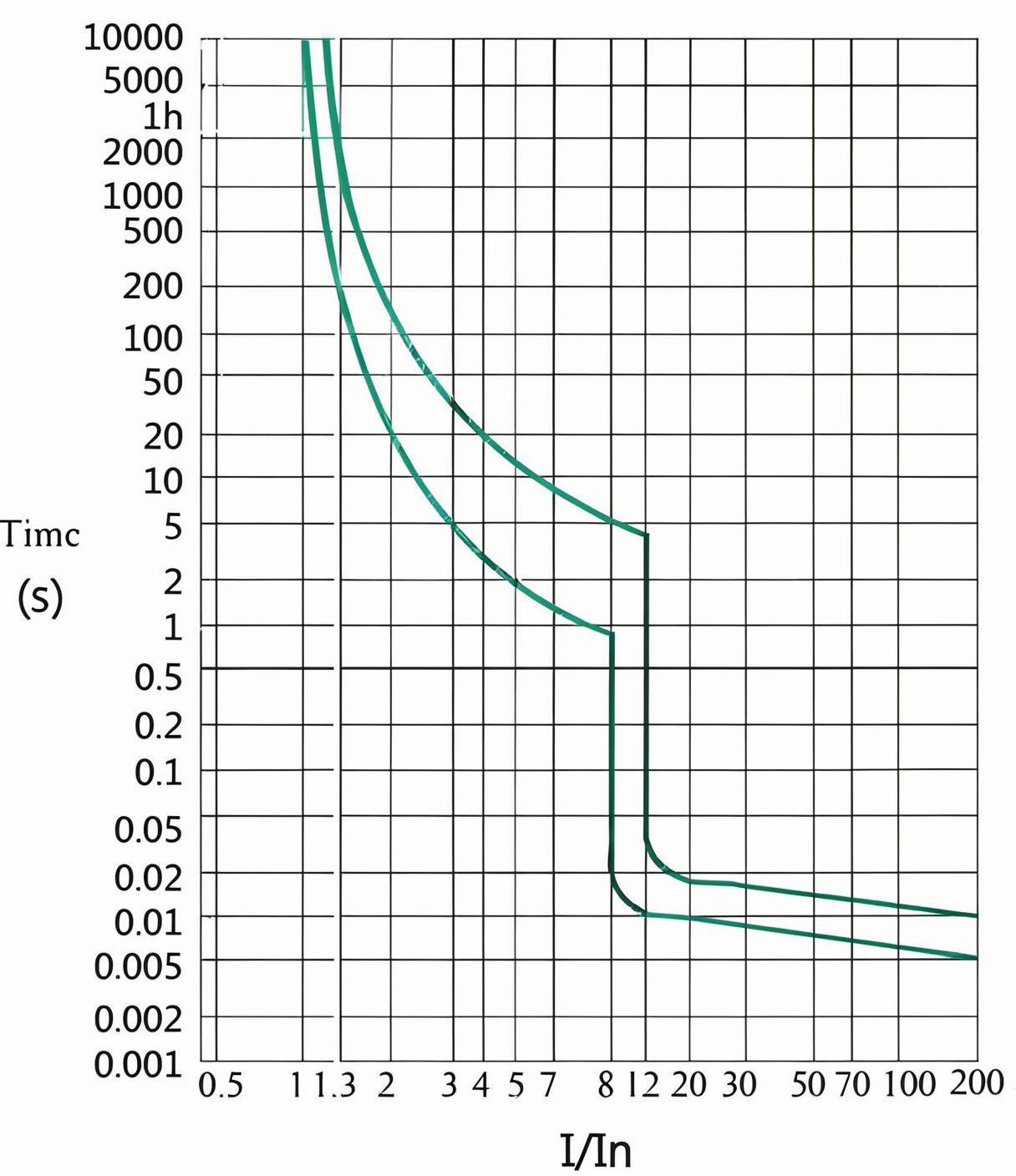

| Time Delay Curves |
