S160 MCCBs are a reliable power distribution and protection solution for industrial, commercial and mining applications. Available in a wide range of fault interruption ratings is 25kA and sizes from 16 to 160A, with various common frames and accessories. Accessories are available for quick and easy configuration, as well trip units such as AC/DC thermal magnetic, AC electronic, metering and communication types.
Connectivity Performance Wide Range
Energy and load measurements Breaking capacity (Icu) Frame sizes available from
available over Modbus and external display up to 25kA at 415VAC 16A to 160A
option for MCCBs 16-160A.
Technical Data
Type

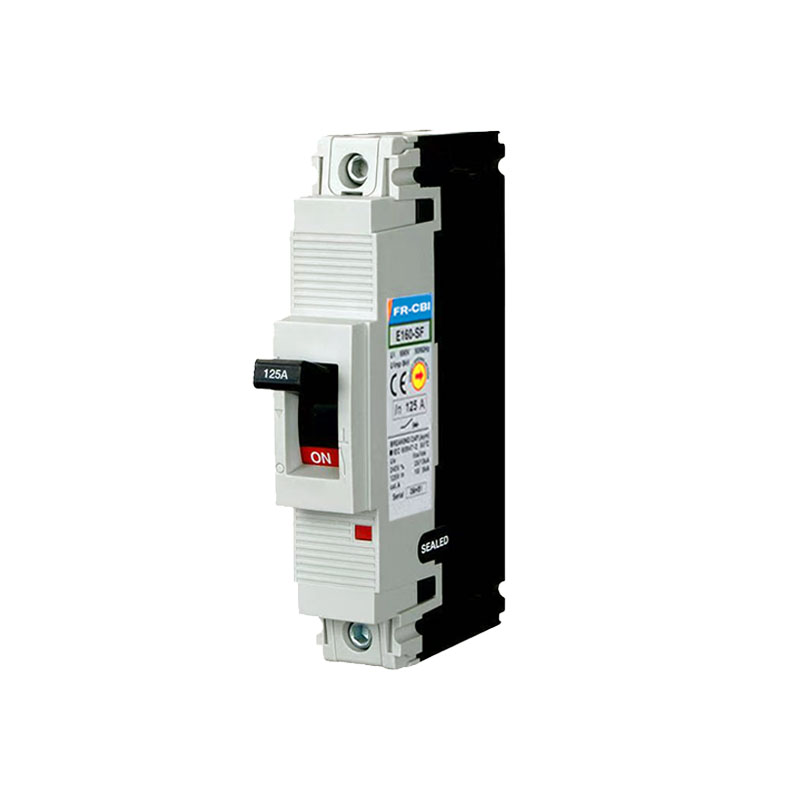

E160-SF

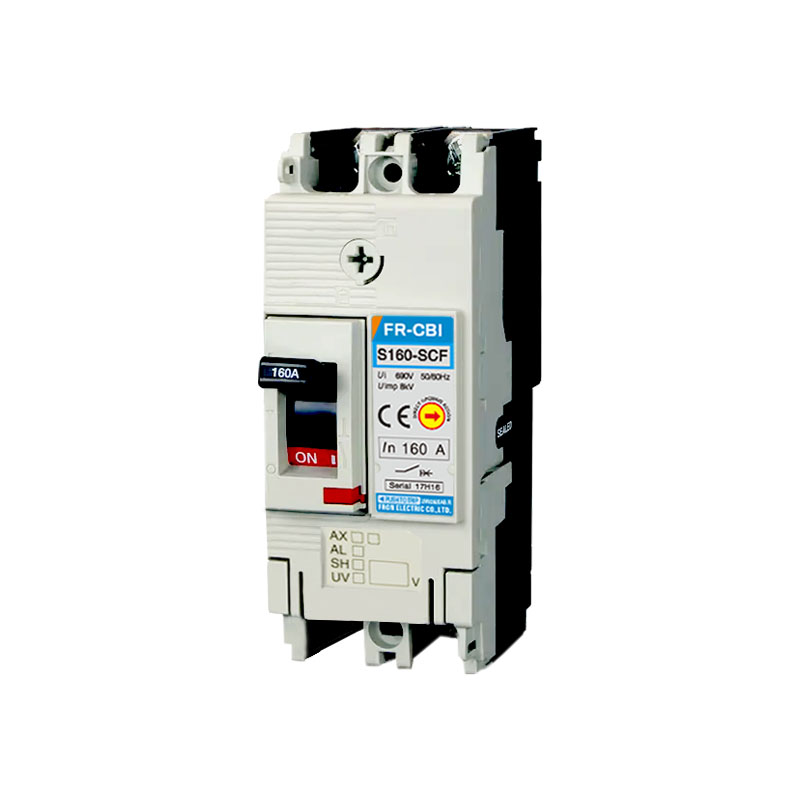

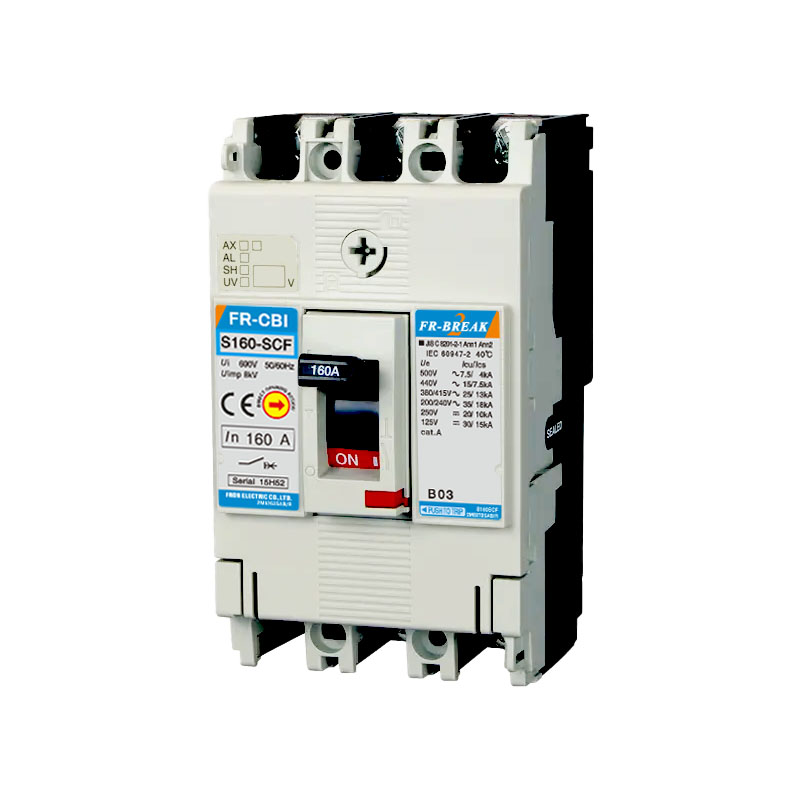

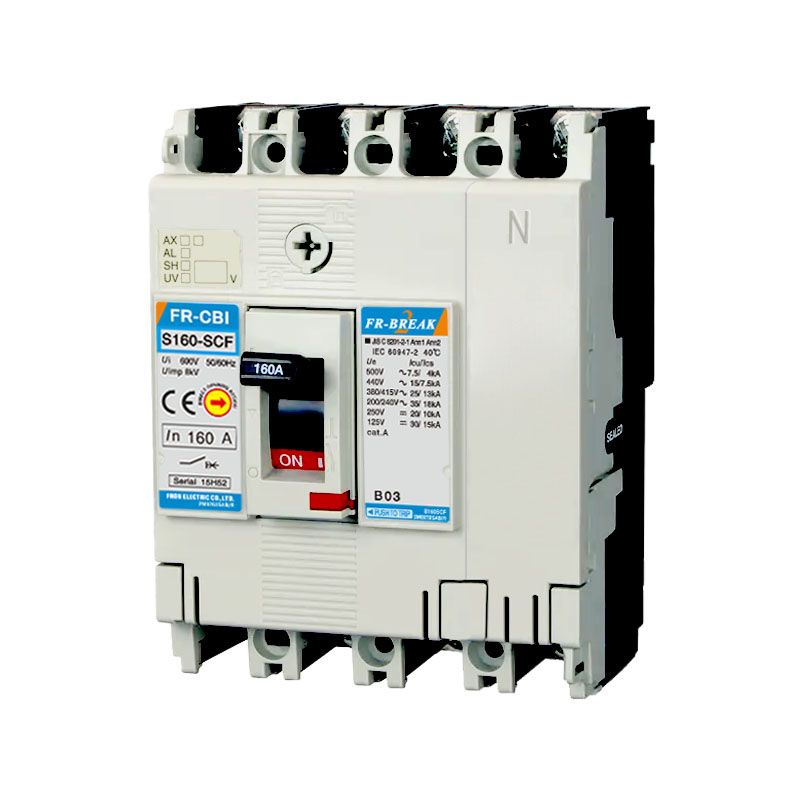

S160-SCF
Frame size (A)
160
160
Number of poles
1
2,3,4
Rated current (Calibrated at 40℃）, A
16-125
15-160
Rated insulation Voltage (Ui) V
690
690
Rated impulse withstand voltage (Uimp) kV
8
8
Rated breaking capacity, kA (Icu/Ics)
AC240V 25/13
AC380V/415V 25/13
Weight, kg
0.3
2P 0.6kg, 3P 0.8kg, 4P 1.0kg

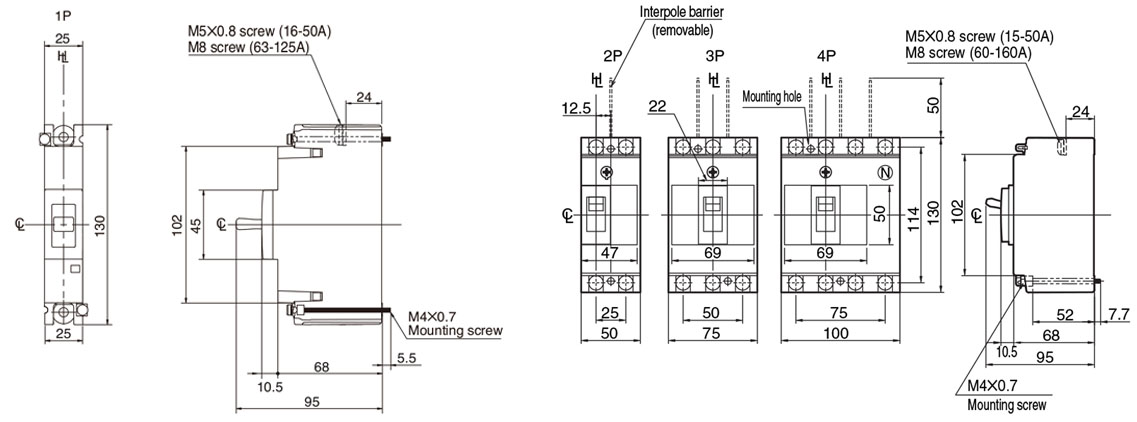

Dimensions
